坛子里收的12864 LMC77SA7706液晶的负压驱动电路

alone · 发表于 2013-10-25 16:16

本帖最后由 alone 于 2013-10-29 15:56 编辑

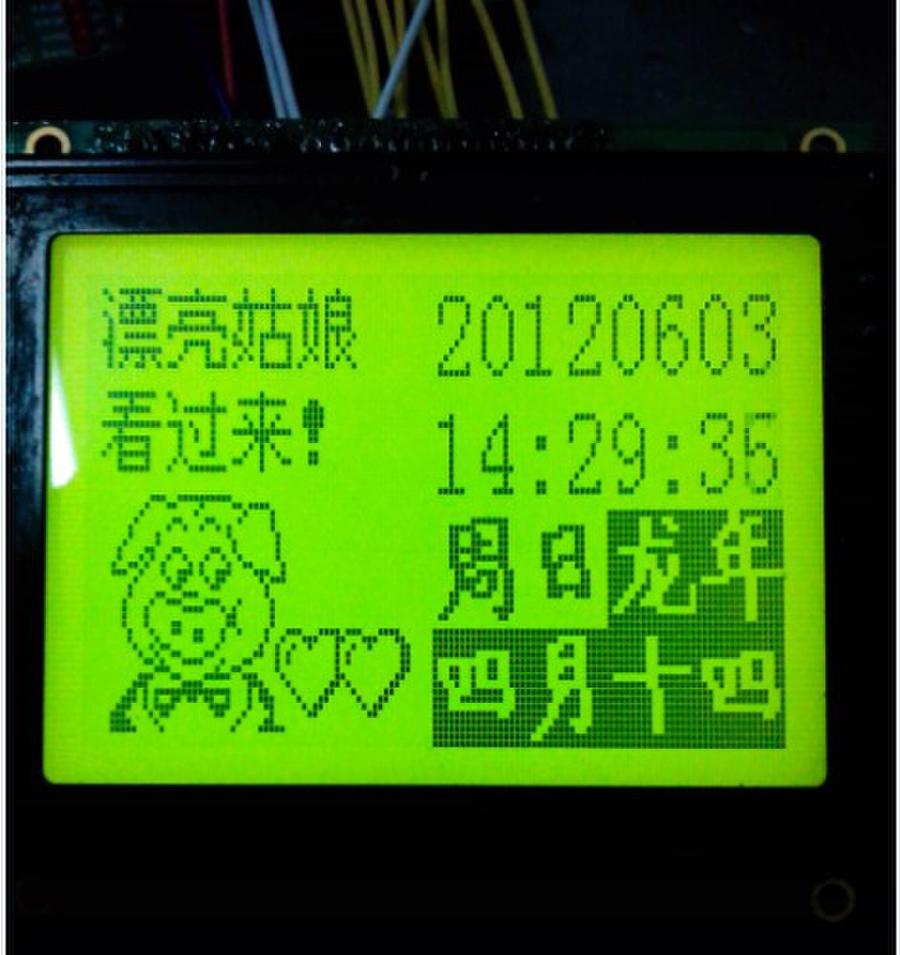

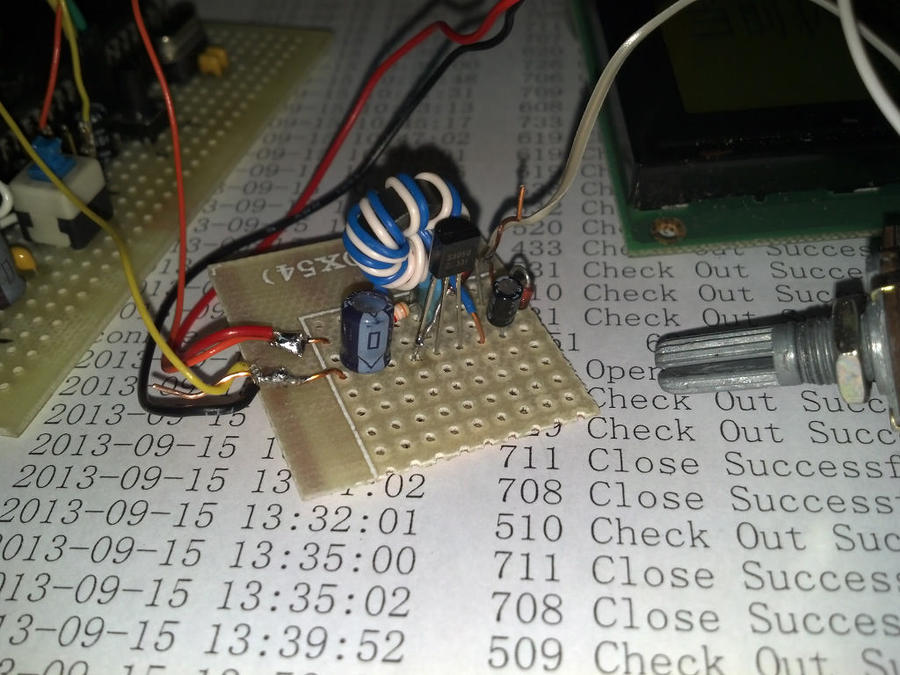

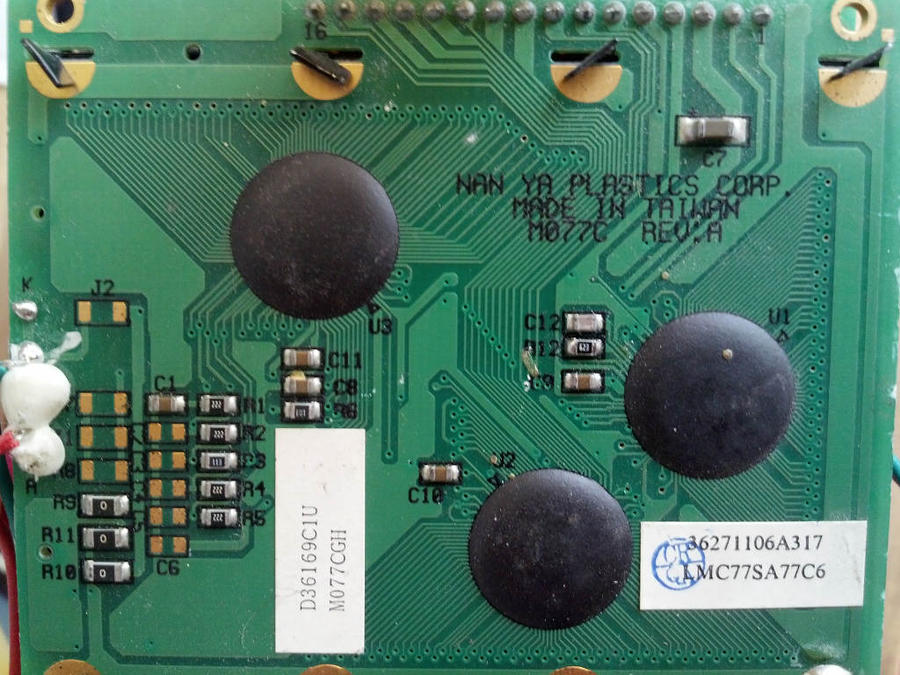

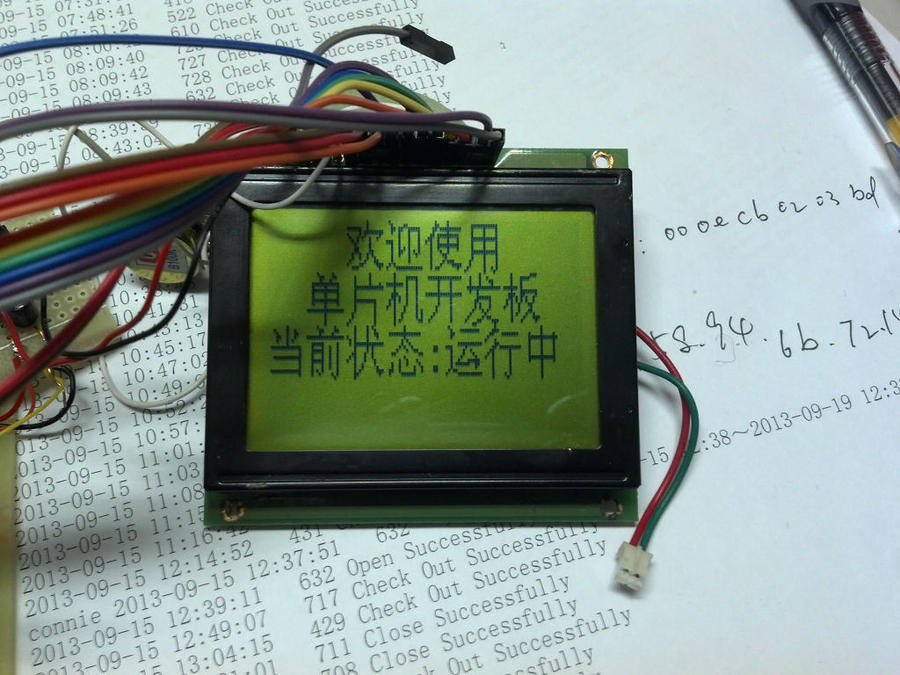

坛里收了几块12864，看有朋友需要负压电路，共享一下。这个液晶没有找到资料，自己试了试，背光5V可用，vo输入-8.XV的电压就能点亮了，没有负压芯片，三阿哥的负压电路由于手里的小磁环绕不下，所以用了另外一个电路。
