AVR-Transistortester又更新了，越来越有意思了。

wumaoxu

坛子里上一贴的地址：https://www.yleee.com.cn/thread-20973-1-2.html
软件下载地址：http://www.mikrocontroller.net/svnbrowser/transistortester/

今天没事上去看了一下，发现版本更新到1.10K了。
看了看PDF文件，觉得主要更新如下：
1、支持ATmega1280和2560了。
2、328支持测试三极管的ICEO和ICES（非零时显示）
3、重磅的来了：
     328可选对话功能，使能附加功能：

• PD4频率测试功能，  分辨率1Hz(>10KHz)或0.0001Hz.
• PC3电压测试功能，外加10:1分压器，测试电压到50V.
• PB2(TP2)信号输出，频率范围10Hz-2MHz.


下面是PDF文件的部分截图：
测试仪功能：

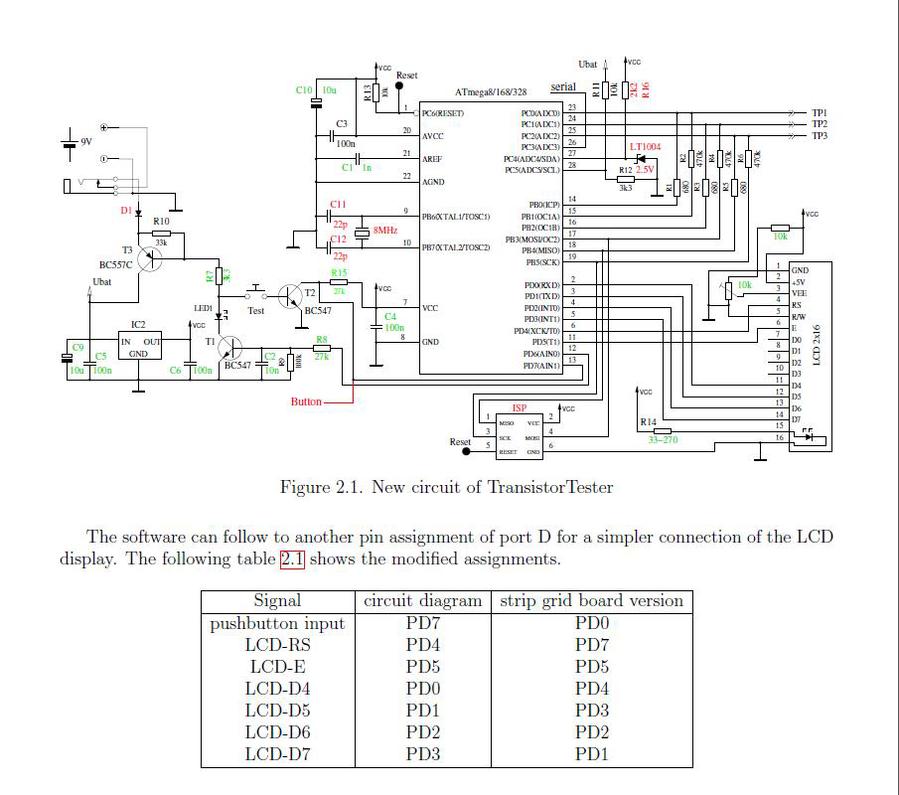

电路图：


附加保护电路和稳压管电压测试电路：

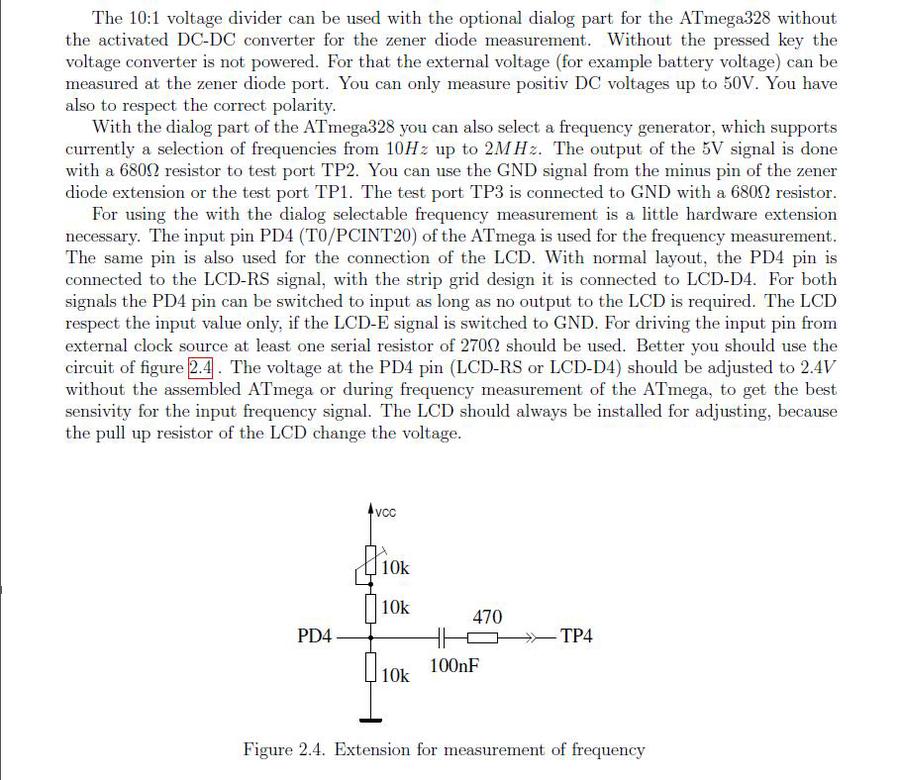

频率测试电路及相关说明：


PDF文件：
ttinfo.pdf (231.23 KB, 下载次数: 882)

2014-3-7 16:42 上传

点击文件名下载附件

ttester.part1.rar (781.25 KB, 下载次数: 917)

2014-3-7 16:42 上传

点击文件名下载附件

ttester.part2.rar (448.16 KB, 下载次数: 929)

2014-3-7 16:42 上传

点击文件名下载附件

zhqsoft

好等会研究下去。。。

wumaoxu

软件中的readme文件：
This directory contains the program source for all TransistorTester versions.
To build the programming files for your ATmega microcontroller
please change to one of the following subdirectories:
mega8, default, mega328, mega168_strip_grid, mega328_strip_grid, mega328_dogm and mega328_strip_grid_dogm

The mega8 subdirectory contains the Makefile to build the programming data for a ATmega8 microcontroller.
The default subdirectory contains the Makefile to build the programming data for a ATmega168 controller.
The mega328 subdirectory contains the Makefile to build the programming data for a ATmega328 controller.
The subdirectories with the _strip_grid ending contains the Makefiles for the different connection
of the LCD used for the strip grid board and can not be used with the normal connection of the LCD.
You can find the programming data and the matching Makefile for the DOGM style LCD in the subdirectories
with dogm ending (mega328_dogm and mega328_strip_grid_dogm).

All subdirectories hold the Makefile the compiled data TransistorTester.hex and TransistorTester.eep!
The .hex data must be loaded to the flash memory and the .eep data must be loaded to the EEprom memory.
With the Linux operating system or with WinAVR the data can be loaded with the program avrdude to the
memory of the ATmega, controled with the Makefile. The connected ISP programmer must be supported by the program avrdude.
The data can also be loaded with any other program to the ATmega without control of the Makefile.

You can also create a own subdirectory and copy any of the Makefiles of the other directories to this
own subdirectory. Now you can set other options in this Makefile copy in your directory and try to build
your own TransistorTester programming data in this directory.

Please tell me, if you have problems with my software or if you have found errors.
You can send me a Email to kh_kuebbeler@web.de or answer to my www.mikrocontroller.net thread.

Good luck
Karl-Heinz Kübbeler

wumaoxu

软件里面的文件目录多了不少，arduino_m2560是支持arduino的？
后缀-dogm的是那种lcd？
后缀-1.9v和-3.3v的是什么意思？

ain365

功能越来越多了

smartphone

下载来试试看

efan

频率和方波我也实现了，待会看看作者是咋实现的。

hysy

早n多年前就扔了的东东

ad2000

给的网址里怎么没有新的呢

panqi

等高手先上
