M32三轴驱动主控板,用于雕刻机(全部完工)
作者: GandF
M32三轴驱动主控板,用于雕刻机
单片机:M32
显示:12864串口屏
电路:
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
键盘:4*4
键盘分布
7 8 9 play/pause
X+ Y+ Z+ next
4 5 6 exit
X- Y- Z-
1 2 3 program
X步进(按键调节功能) Y步进 Z步进
X(直接输入功能) Y Z
0 . – enter
输出:8线接三轴驱动器,分别为: 三轴使能、X_STEP、X_DIR、Y_STEP、Y_DIR、Z_STEP、Z_DIR、主轴继电器使能
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
功能:
主菜单
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
1、使用M32内部12K FLASH空间做G码保存空间,通过UART口,使用SSCOM软件传输(38400bps)。
2、G码运行。(支持G1代码,G0代码分成多条G1代码)
单步模拟运行
连续模拟运行(可以用于检查G代码是否有错)
单步运行
连续运行
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
3、G码查看
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
5、手动控制。1)按键调节;2)直接输入坐标
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
6、返回原点或零点
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
7、关闭三轴电机
8、参数设置
方向
雕刻机 步/mm
主轴返回时,Z抬高的高度设置
XYZ原点设置
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
雕20mm半径的圆视频。
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/uploads/2019/10/rar-6.gif?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/uploads/2019/10/rar-6.gif?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
MOV003.part1.rar(1.91 MB, 下载次数: 3795)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/uploads/2019/10/rar-6.gif?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/uploads/2019/10/rar-6.gif?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
MOV003.part2.rar(1.48 MB, 下载次数: 3816)
增加读SD卡文件成功!!!
支持G1码,F设定
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
测试程序
成品

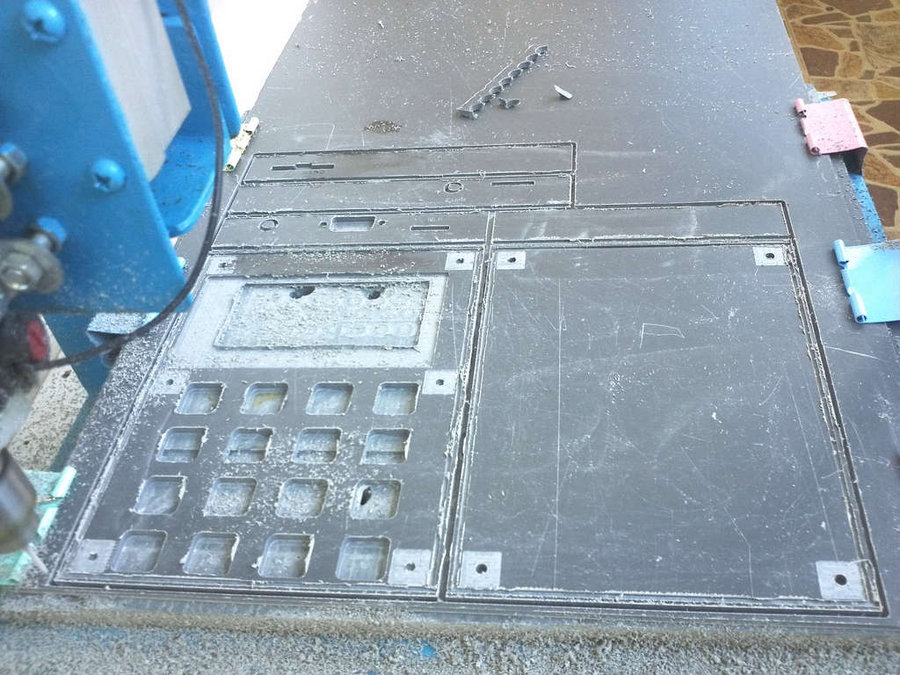

雕板各部件示意图
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
使用丙酮做粘合剂。丙酮毒性小点。
上漆
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
内部
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
![M32三轴驱动主控板,用于雕刻机(全部完工)](https://i0.wp.com/www.yleee.com.cn/shop/wp-content/themes/sage/themer/assets/images/lazy.png?ssl=1)
数据线14条。使能、XYZ三轴驱动信号、主轴使能、GND、5V、三个限位信号、GND
